Sync check relay 25.
Connecting two electrical systems that are not closely matched can cause expensive damage and disturbance to the electrical.
Reestablishing a connection between two parts of a power system.
The synchro check relay can be used to assist in the semi automatic parallelling of two ac power systems.
The volt free relay contacts change state when the voltage level phase relationship and frequency are within the selected synchronising limits.
The sync check relay is ansi element 25.
Be1 25 sync check relays are recommended for situations that require verification of synchronism prior to closing a circuit breaker.
The be1 25 sync check relay is designed to measure the phase angle between the monitored single phase voltages on the line and bus sides of a breaker and verify this angle is less than or equal to the front panel setting.
25s 25v synchronism check relays solid state relays designed for distribution systems to verify that the voltages on either side of a circuit breaker are synchronized and in the proper phase and magnitude relationship to allow automatic closing.
Sync check 25 modern sync check compensates for pt connections and phase angle.

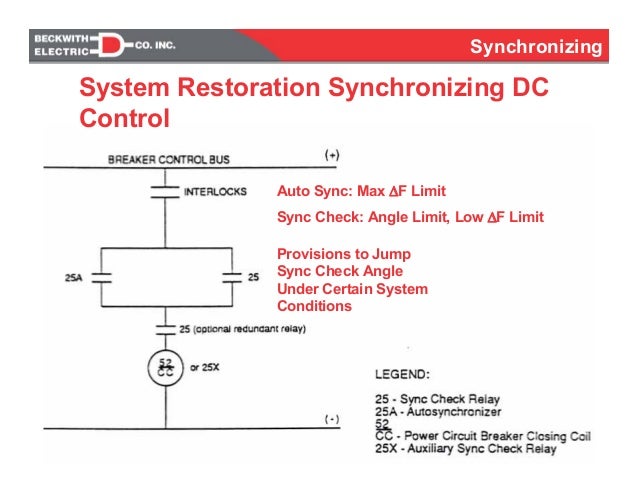

Sync check relay supervision automatic synchronizer matches v and f and closes.
Out of sync closing can create significant impact on the power system and in worst case can damage the equipment due to high short circuit currents.
If the measured angle has met this criteria for.
The basic method of synchronism check in a modern digital relay is shown in the figure below.
Paralleling a generator to a system.
Generator sync check relays should supervise both manual and automatic modes of operation to prevent generator damage from operator errors or from malfunctioning automatic synchronizing relays.
For this reason it is normal practice to have the sync check relay function provided in a different package than the automatic synchronizing relay to.
In the design of electrical power systems the ansi standard device numbers ansi ieee standard c37 2 standard for electrical power system device function numbers acronyms and contact designations identifies the features of a protective device such as a relay or circuit breaker these types of devices protect electrical systems and components from damage when an unwanted event occurs such.
